FD-Mag. Adjustment
Adjust the magnification in paper feed direction when scanning on the ADF.
Tips
Make this adjustment after completing Printer Adjustment - FD-Mag. Adjustment.
Follow the procedure on Displaying the [Administrator Setting Menu] Screen to display the Administrator Setting Menu screen.

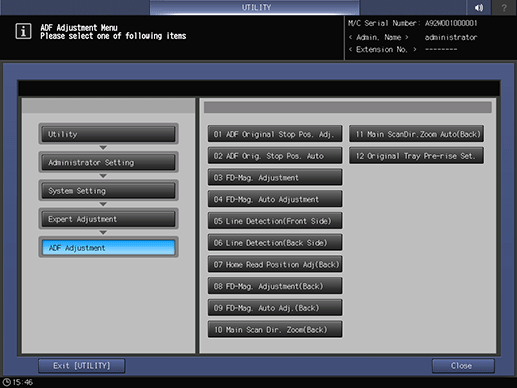

Press System Setting on the Administrator Setting Menu screen, and then press Expert Adjustment, ADF Adjustment, and FD-Mag. Adjustment in sequence.
The FD-Mag. Adjustment screen is displayed.
supplementary explanationFor details about subsequent operations, refer to [FD-Mag. Adjustment].
