Administrator Setting: Copy Setting

The following features can be provided by switching the selection. This setting can also be performed by selecting Copy Setting from the User Setting.

Menu item

Description

Setting options (with default bolded)

Fold & Staple Auto Selection

Specify whether or not to automatically set the Booklet mode when Fold & Staple mode is selected.

ON, OFF

Orig. Glass Auto Size Select

Specify whether or not to activate Auto Paper when an original is placed on the original glass.

ON, OFF

ADF Auto Size Select

Specify whether or not to activate Auto Paper when an original is placed on the ADF.

ON, OFF

Auto Zoom (Original Glass)

Specify whether or not to activate Auto Zoom when an original is placed on the original glass.

ON, OFF

Auto Zoom (ADF)

Specify whether or not to activate Auto Zoom when an original is placed on the ADF.

ON, OFF

Non-Image Area Erase

Specify the conditions to be applied to the Non-Image Area Erase function.

[ON]: Always erase the outside area of the original.

[APS/AMS]: Erase the outside area of the original when Auto Paper or Auto Zoom is activated.

[Except Orig. Glass(1:1)]: Erase the outside area except when making a same-sized copy as the original scanned from the original glass.

ON, APS/AMS, Except Orig. Glass (1:1)

ADF Frame Erase

Set to erase the frame when copying in ADF mode.

None, 1 mm, 2 mm, 3 mm, 4 mm, 5 mm

Interruption Suspend Setting

Specify the timing to interrupt the current job when Interrupt is pressed on the control panel while copying is in progress.

[Stop Immediately]: The machine stops copying immediately to allow an interrupt job.

[WhenCurrentComp.]: The machine completes to output the current set before stopping to allow an interrupt job.

Stop Immediately, WhenCurrentComp.

Printer Prohibit Timer

Set the time interval to suspend a print job via PC after the last operation of touch keys.

OFF, 15 seconds, 30 seconds, 60 seconds, 90 seconds

Orig./Out Bind Direction Set

Specify whether or not to conform the bind direction in Output Setting with that specified in Original Setting.

ON, OFF

Specify Default Tray APS OFF

Specify the tray to be automatically selected when Auto Paper (APS) is canceled.

APS Tray, Tray 1 to Tray 9

Scan Stop by Pull Out Tray

Specify whether or not to stop the scanning operation if any tray is pulled out.

ON, OFF

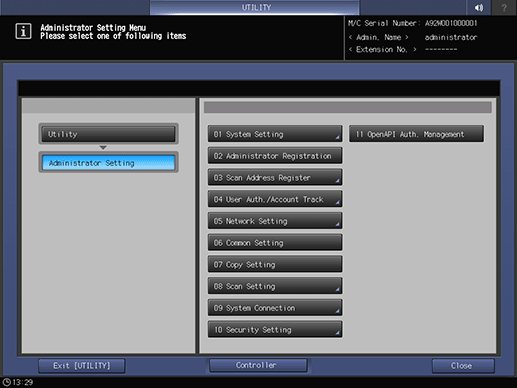

  1. Follow the procedure on Displaying the [Administrator Setting Menu] Screen to display the Administrator Setting Menu screen.

  2. Press Copy Setting on the Administrator Setting Menu screen.

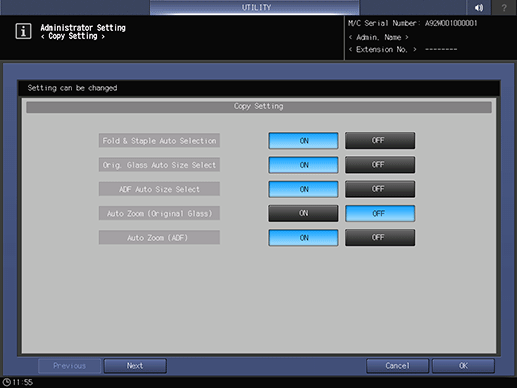

    The Copy Setting screen is displayed.

    • supplementary explanationFor subsequent operations, follow the same procedure as that in User Setting - Copy Setting. Refer to [User Setting]: [Copy Setting] for details.
