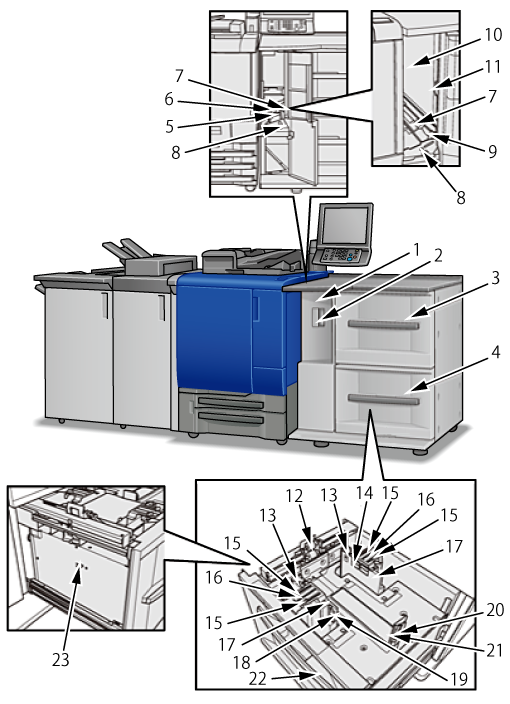

Paper Feeder Unit PF-602m

1

Tray left side door

Opens to clear paper jam from the main body right side door or to clear paper jams in a tray of Paper Feeder Unit.

2

Tray left side door knob

Held to open the tray left side door.

3

Upper tray (Tray 3)

Holds 3,000 sheets (80 g/m² / 21 lb Bond).

4

Lower tray (Tray 4)

Holds 3,000 sheets (80 g/m² / 21 lb Bond).

5

LeverPF5

Opens leftward for removal of paper jam.

6

Horizontal transport door

Opens upper-leftward for removal of paper jam.

7

LeverPF2

Opens upper-leftward for removal of paper jam.

8

KnobPF4

Turned to allow removal of paper jam.

9

LeverPF3

Opens upward for removal of paper jam.

10

Vertical transport door

Opens leftward for removal of paper jam.

11

LeverPF1

Opens leftward for removal of paper jam.

12

Feed roller

Feeds copy paper sheet by sheet into the main body.

13

Small size guides (2 pieces)

Open inward for print paper of the width less than 182 mm / 7.17".

14

Air nozzle

Blows air to slightly float the paper.

15

Side guide lock knobs (4 pieces)

Turned to move or fix the side guide plates.

16

Paper size indicator

Indicates an appropriate position of side guide plates for the paper size to be loaded.

17

Side guide plates (2 pieces)

Aligned to the edges of loaded paper.

18

Side guide lock release lever

Pushed backward to release the lock in order to move side guide plates.

19

Side guide knobs (2 pieces)

Held together with the side guide lock release lever in order to move the side guides.

20

Rear guide plate

Aligned to the rear edge of loaded paper.

21

Rear edge guide lock release lever

Pushed to release the lock in order to move the rear guide plate.

22

Tray handle

Held to withdraw the tray.

23

Bottom plate fixing knob

Slid to the rear side and turned clockwise to keep the bottom plate elevated to the top position.
