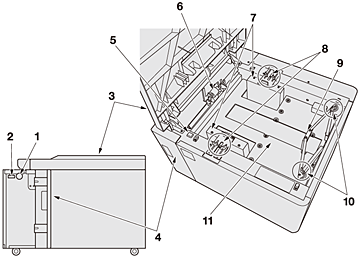

Large Capacity Unit LU-202m

No.

Name

Description

1

KnobLC1

Turned clockwise for removal of paper jam.

2

LeverLC2

Opens downward for removal of paper jam.

3

Top door

Opens to allow paper supply or removal of paper jam.

4

Left door

Opens to allow removal of paper jam.

5

Tray bottom plate lowering button

Pressed to lower the tray bottom plate to allow paper supply.

6

Feed roller

Feeds copy paper into the main body.

7

Side guides

Holds the sides of loaded paper.

8

Side guide knobs (2 pieces)

Turned to move or fix the side guides.

9

Rear guide

Holds the rear end of loaded paper.

10

Rear guide knob

Turned to move or fix the rear guide.

11

Tray bottom plate

Goes up automatically as paper supply becomes low. Press tray bottom plate lowering button to lower it.
