Finisher FS-612 (Punch Kit PK-512 or Punch Kit PK-513)

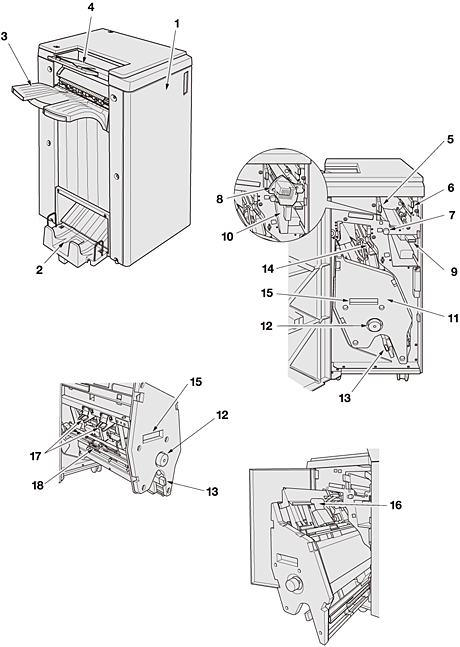

External view of Finisher FS-612

No.

Name

Description

1

Finisher front door

Opens to allow staple supply or removal of paper jam. Also opens to allow removal of waste paper for the machine mounted with Punch Kit PK-512 or Punch Kit PK-513.

2

Fold/Staple mode tray

Holds sets output in Fold & Staple, Half Fold, or Tri-Fold mode.

3

Primary (main) tray

Holds non offset, offset, or stapled sets.

4

Secondary (sub) tray

Holds sets output in non offset mode.

Internal view of Finisher FS-612

No.

Name

Description

5

LeverFN4

Opens rightward for removal of paper jam.

6

LeverFN1

Opens leftward for removal of paper jam.

7

KnobFN3

Turned to allow removal of paper jam.

8

Punch Kit PK-512 or Punch Kit PK-513 (option)

Punches file holes in output sheets.

9

LeverFN2

Opens downward for removal of paper jam.

10

Punch kit scrap box (option)

Holds waste paper punched out.

11

Stacker unit

Stapler and the devices for folding and stapling, half-folding, and tri-folding are mounted.

12

KnobFN7

Turned to allow removal of paper jam.

13

LeverFN8

Opens leftward with the stacker unit drawn out for removal of paper jam.

14

LeverFN5

Opens lower leftward for removal of paper jam.

15

HandleFN6

Withdraws the stacker unit for removal of paper jam in the stacker unit, or for staple supply.

16

LeverFN9

Opens rightward for removal of paper jam.

17

Staple cartridge

Removed for staple supply and added with staples.

18

LeverFN10

Opens leftward for removal of paper jam.

CAUTION

DO NOT put your hand on the top of printed sheets when removing them from the primary (main) tray.

  • Failure to do so may cause unexpected injury, such as getting your fingers squeezed between the main body and the tray going upward. Please be sure to hold both front and rear sides of paper when removing printed sheets from the tray.
