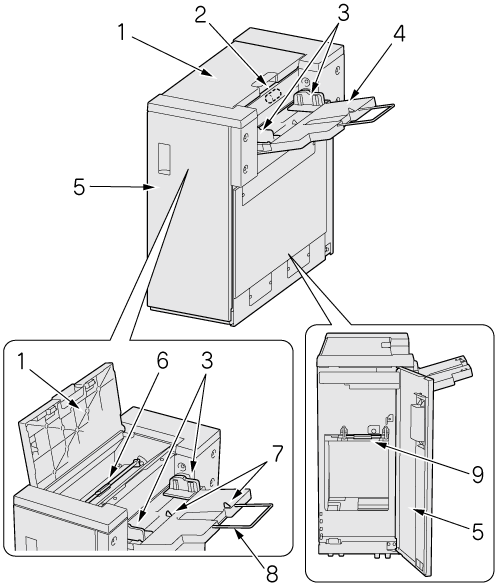

Multi Bypass Tray MB-508

1

Top door

Opens upward for removal of paper jam.

2

Pickup roller

Feeds copy paper into the main body.

3

Side guide plates (2 pieces)

Aligned to the edges of loaded paper.

4

Bypass Tray

Open this tray rightward to load paper.

5

Front door

Opens rightward for removal of paper jam.

6

Bypass conveyance door

Open this door to the left to clear jammed paper.

7

Paper detection sensor

Detects whether there is loaded paper.

8

Auxiliary guide

Pull this out when loading large-size paper.

9

Bypass relay door

Open this door downward to clear jammed paper.
