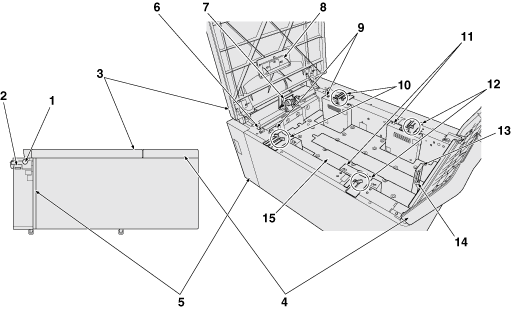

Large Capacity Unit LU-202XL / Large Capacity Unit LU-202XLm

No.

Name

Description

1

KnobLC1

Turned clockwise for removal of paper jam.

2

LeverLC2

Opens downward for removal of paper jam.

3

Top door (Left)

Opens to allow paper supply or removal of paper jam.

4

Top door (Right)

Opens to allow paper supply or removal of paper jam.

5

Left door

Opens to allow removal of paper jam.

6

Tray bottom plate lowering button

Pressed to lower the tray bottom plate to allow paper supply.

7

Feed roller

Feeds copy paper into the main body.

8

Paper holder

Prevents paper floating or misalignment.

9

Side guide (Left)

Holds the sides of loaded paper.

10

Side guide knob (Left) (2 pieces for each)

Turned to move or fix the side guide (left).

11

Side guide (Right)

Holds the sides of loaded paper.

12

Side guide knob (Right) (1 piece for each)

Turned to move or fix the side guide (right).

13

Rear guide

Holds the rear end of loaded paper.

14

Rear guide lock release lever

Pushed to release the lock in order to move the rear guide plate.

15

Tray bottom plate

Goes up automatically as paper supply becomes low. Press tray bottom plate lowering button to lower it.
