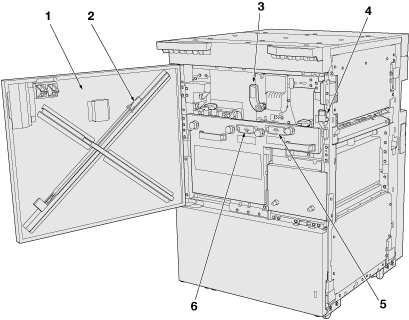

Integrated Color Care Unit IQ-501

No.

Name

Description

1

Integrated Color Care Unit front door

Opens to allow removal of paper jam.

2

Cleaning bar

Clean Inline Scanner.

3

Lever [IQ7]

Opens leftward for removal of paper jam.

4

Lever [IQ1]

Opens the cover to allow removal of paper jam.

5

Inline Scanner1

Scans the bottom side of the paper to be conveyed.

6

Inline Scanner2

Scans the top side of the paper to be conveyed.

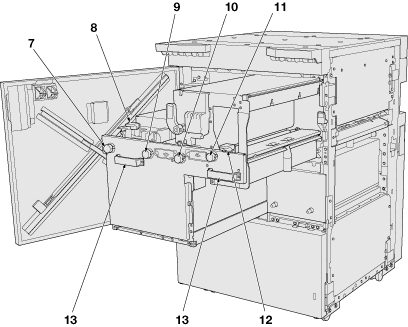

7

Knob [IQ6]

Turned to allow removal of paper jam.

8

Lever [IQ9]

Opens upward for removal of paper jam.

9

Knob [IQ5]

Turned to allow removal of paper jam.

10

Knob [IQ4]

Turned to allow removal of paper jam.

11

Knob [IQ3]

Turned to allow removal of paper jam.

12

Lever [IQ2]

Opens upward for removal of paper jam.

13

Handle [IQ8]

Held to pull out the unit when paper jam occurs.
