Main Scan Dir. Zoom(Back)

Adjust the magnification in crosswise direction on the back side when scanning on the ADF.

Tips
  • Make this adjustment after completing Printer Adjustment - CD-Mag. Adjustment.

  1. Follow the procedure on Displaying the [Administrator Setting Menu] Screen to display the Administrator Setting Menu screen.

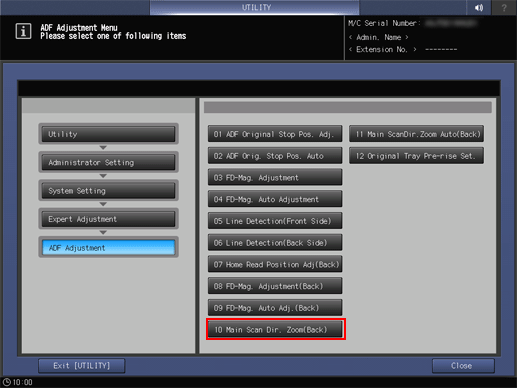

  2. Press System Setting on the Administrator Setting Menu screen, and then press Expert Adjustment, ADF Adjustment, and Main Scan Dir. Zoom (Back) in sequence.

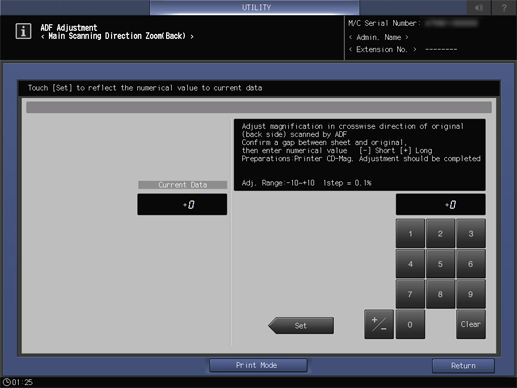

    The Main Scanning Direction Zoom (Back) screen is displayed.
