Acruire Image Log(AutoImage)

Specify whether the service representative can acquire the original image scanned by Integrated Color Care Unit IQ-501 as a log when executing Auto Image Adj..

This log is used to analyze the cause when an image error is detected in Auto Image Adj..

To prevent the service representative from acquiring logs without permission, this function is set to Restrict by default. Log acquirement is possible only when Allow is selected.

In general use, log acquisition is performed by the service engineer, but in rare cases, we may ask a user to acquire logs. A service setting is required in order that the user acquires logs. For details, contact your service representative.

The scanned image is blacked out before saved. The service engineer and log analyzer cannot view the contents of the scanned image.

Tips
  • This function is not available when Integrated Color Care Unit IQ-501 is not mounted on the machine.

  • The acquired logs are saved on a USB flash drive.

  1. Follow the procedure on Displaying the [Administrator Setting Menu] Screen to display the Administrator Setting Menu screen.

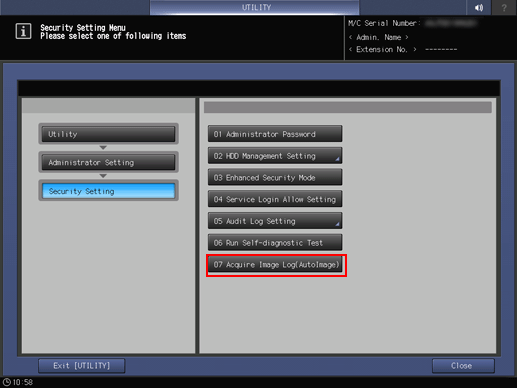

  2. On the Administrator Setting Menu screen, press Security Setting and Acquire Image Log(AutoImage) in sequence.

    The Acquire Image Log(AutoImage) screen is displayed.

  3. To allow log acquirement by the service representative, press Allow. Otherwise, select Restrict, and press OK.

  4. Press Close.

    The screen returns to the Administrator Setting Menu screen.
