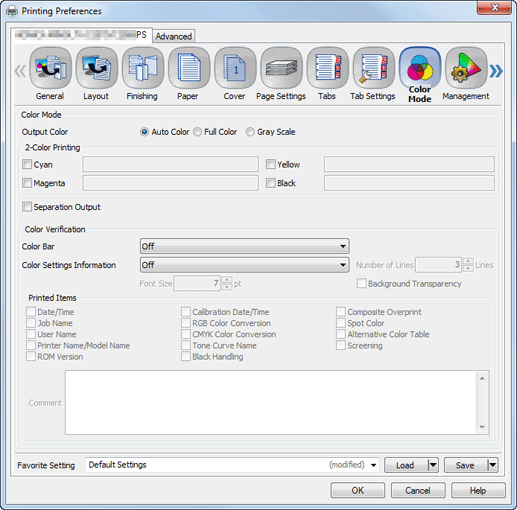

Color Mode

[Output Color]

[Auto Color], [Full Color], [Gray Scale]

Set the output color.

-[Auto Color]: Prints the original in gray scale mode when the image is made only in K after color conversion, and in color mode when a color image is included after color conversion. However, if color and monochrome originals are mixed, the original is switched between color and gray scale modes, which reduces productivity.

-[Full Color]: Prints the original in color regardless of the color conversion result. When [Full Color] is selected, productivity is not reduced because the color mode is not switched for each process.

-[Gray Scale]: Prints the original in black and white regardless of the color conversion result. When [Gray Scale] is selected, productivity is not reduced because the color mode is not switched for each process.

* The color conversion result varies depending on the color configuration setting.

[2-Color Printing]

[Cyan], [Magenta], [Yellow], [Black]

Set this to print with the specified 1 to 4 spot colors.

Select [Cyan], [Magenta], [Yellow], or [Black].

Specify spot color name from [Spot Color Table Name], [Spot Color Name].

For details, refer to How to perform 2-Color Printing.

[Separation Output]

Off, On

Print cyan, magenta, yellow, and black separately for each proof.

[Color Bar]

[Off], [Left], [Top], [Right], [Bottom], [Image Controller Default]

Set a print position for [Color Bar].

[Color Settings Information]

[Off], [Left], [Top], [Right], [Bottom], [Image Controller Default]

Specify a print position for [Color Settings Information].

[Number of Lines]

1 to 5

Set the number of lines for [Color Settings Information].

[Font Size]

4 pt to 36 pt

Specify the font size in [Color Settings Information].

[Background Transparency]

Off, On

Prints [Color Settings Information] with a transparent image.

[Printed Items]

[Date/Time]

Prints the date and time when printing has been executed.

[Job Name]

Prints the name of the currently executed print job.

[User Name]

Prints the name of the user who executes a print job.

[Printer Name/Model Name]

Prints the machine name and model name.

[ROM Version]

Prints the ROM version of the image controller.

[Calibration Date/Time]

Prints the date and time when calibration has been carried out.

[RGB Color Conversion]

Prints the type of the profile for RGB color conversion.

[CMYK Color Conversion]

Prints the usage status of CMYK color conversion.

[Tone Curve Name]

Prints the currently used tone curve name.

[Black Handling]

Prints whether to use Black Handling.

[Composite Overprint]

Prints the usage status of Composite Overprint.

[Use Spot Color]

Prints whether to use spot colors.

[Alternative Color Table]

Prints whether to use alternative colors.

[Screening]

Prints the currently used screen setting.

[Comment]

Prints a comment using up to 200 characters. However, printing may be cut off depending on the number of printed pages or the number of lines.
