How to set application
When copying using an Application Setting, select the desired functions on the Application screen.
Press COPY tab on the screen.

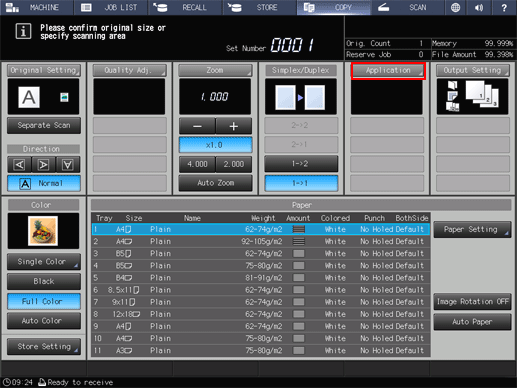

Press Application on the COPY screen.

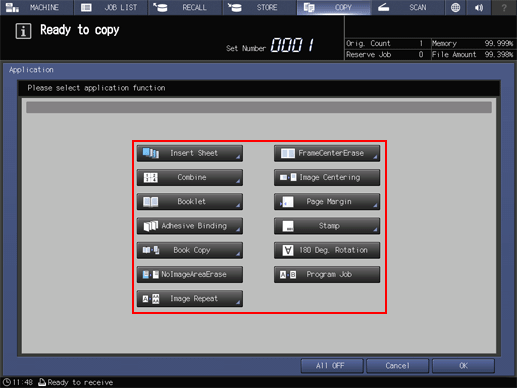

The Application screen is displayed.
Pressing any button displays the dedicated screen to set each function (the dedicated screen is not provided for No Image Area Erase, Image Centering, 180 Deg. Rotation, and Program Job).
Various functions can be used in combination, however, if one function on the menu is incompatible with another, it will appear dimmed.
To resume the previous copy conditions, press Cancel. Press All OFF to clear all the application selections with the setting made for each saved. To resume the default setting for all copying features including Output Setting, press Reset on the control panel.
Press OK on the Application screen to return to the COPY screen.
supplementary explanationPrinting does not start without returning to the COPY screen. Be sure to display the COPY screen when you start printing.
