Sorting Copies to Secondary (Sub) Tray

A machine mounted with Finisher FS-532 is initially set to output sorted sets to the primary (main) tray, regardless of whether or not to be mounted with other options. To deliver paper to the secondary (sub) tray, follow the procedure below to change the output tray and select the desired output mode.

  1. Position the original.

  2. Press the COPY tab to display the COPY screen.

  3. Press Output Setting.

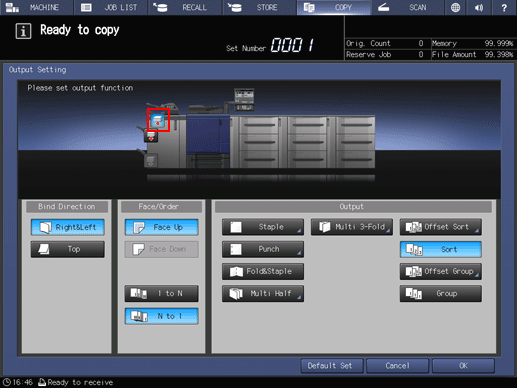

    The Output Setting screen is displayed.

  4. Select the secondary (sub) tray as output tray.

    • supplementary explanationPress that is the tray position button of the secondary (sub) tray.

  5. Select the desired output mode.

    • supplementary explanationSelect either Sort or Group provided under Output.

    • supplementary explanationSelect either Face Down or Face Up, and either 1 to N or N to 1 provided under Face/Order, as needed.

    • supplementary explanationSelecting N to 1 automatically sets and limits the Face mode to Face Up.

  6. Press OK on the Output Setting screen.

    The specified output setting icon is displayed under Output Setting on the COPY screen.

    NOTICE
    • The secondary (sub) tray has a limit in capacity. Be careful not to exceed the limit, otherwise unexpected trouble may be caused.
