Image Rotation OFF: Prohibits image rotation to suit the orientation.

When the machine automatically detects the original of 16K long edge feed, A4 long edge feed or 8.5 11 long edge feed, if only 16K short edge feed, A4 short edge feed or 8.5 11 short edge feed paper is loaded in the tray, rotate the image at 90 degrees to copy it on paper of 16K short edge feed, A4 short edge feed or 8.5 11 short edge feed. The original to be loaded only in landscape (short edge feed) orientation (e.g., A3, B4, 11 17, and 8K) can be copied onto paper loaded in a tray in portrait (long edge feed) orientation with an appropriate magnification ratio.

Tips
  • The timing to operate this function can be specified.

The machine is initially set to activate the Image Rotation function automatically. Follow the procedure below to deactivate/activate this function.

Original

Output

Landscape original

Image Rotation: ON

Image Rotation: OFF

A3 short edge feed / 11 17 short edge feed

B4 short edge feed / 8K short edge feed

A4 short edge feed / 8.5 11 short edge feed / 16K short edge feed

B5 short edge feed / 5.5  8.5 short edge feed

Portrait original

Image Rotation: ON

Image Rotation: OFF

A4 long edge feed / 8.5  11 long edge feed / 16K long edge feed

B5 long edge feed / 5.5  8.5 long edge feed

  • preconditionThis option is available for the following paper sizes: A4 short edge feed/long edge feed, B5 short edge feed/long edge feed, A5 short edge feed/long edge feed, 8.5 11 short edge feed/long edge feed, 5.5  8.5 short edge feed/long edge feed, 16K short edge feed/long edge feed.

  • preconditionIf the original size is A3 short edge feed, B4 short edge feed, 11 17 short edge feed, or 8K short edge feed, Rotation functions for reduced scale copy.

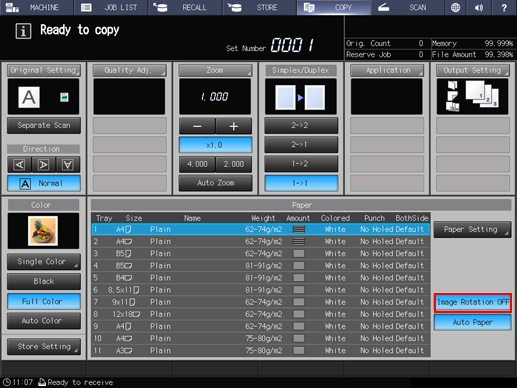

  1. Press the COPY tab to display the COPY screen.

  2. Press Image Rotation OFF.

    The Image Rotation OFF key will be highlighted to indicate that this function is deactivated.

  3. Press Image Rotation OFF.

    The Image Rotation OFF key will be deselected. The Image Rotation function is now activated.
