Outputting to the Secondary (Sub) Tray

Output mode

Description

Sort

Outputs multiple copies of the original set. Copies are stacked upon exit without being offset.

Group

Groups together multiple copies of each original. Copies are stacked upon exit without being offset.

Combined with the output modes above, you can also select the desired Face (Face Up or Face Down) and Order (1 to N or N to 1), as needed.

  1. Position the original.

  2. Press the COPY tab to display the COPY screen.

  3. Press Output Setting.

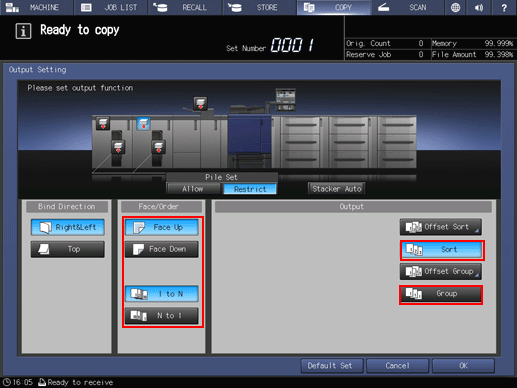

    The Output Setting screen is displayed.

  4. Select the secondary (sub) tray as output tray.

    • supplementary explanationOn the front image of the machine in the Output Setting screen, the tray currently selected is highlighted. If the sub tray is not selected as an output tray, press the sub tray position button .

  5. Select the desired output mode.

    Select either Sort or Group provided under Output.

    Select the desired Face (Face Up or Face Down) and Order (1 to N or N to 1), as needed.

    • supplementary explanationSelecting N to 1 automatically sets and limits the Face mode to Face Up.

  6. Press OK on the Output Setting screen.

    An icon representing specified function is displayed under Output Setting on the COPY screen.

    NOTICE
    • Be careful not to exceed the sub tray capacity, otherwise unexpected trouble may be caused.
