Stapling Copies
Copies are stapled in this mode. Select one of the following five types of the staple position.
Staple position | Stapling method |
|---|---|
Corner Staple - Left Corner |
|
Corner Staple - Right Corner |
|
2 Position Staple - Left |
|
2 Position Staple - Top |
|
2 Position Staple - Right |
|
Reference
The Corner Staple - Left Corner mode sets staples diagonally to the paper. In other modes, staples are set parallel to the edge.
Position the original.
Press the COPY tab to display the COPY screen.
Press Output Setting.

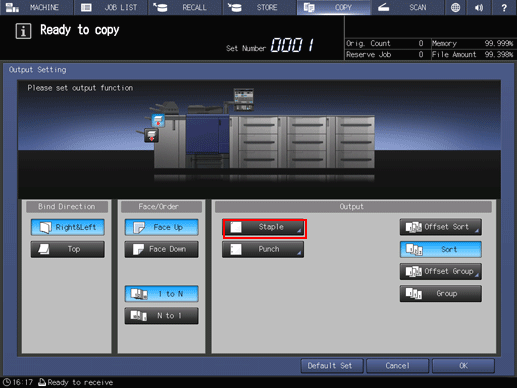

The Output Setting screen is displayed.
Press Staple under Output.

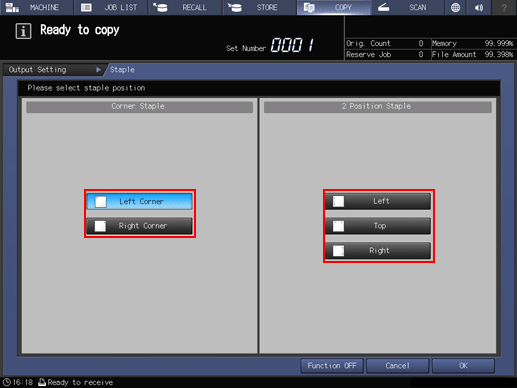

The Staple screen is displayed.
Press the desired staple position key.
Press OK.
supplementary explanationTo resume the previous setting, press Cancel. To cancel the function, press Function OFF.
The screen returns to the Output Setting screen.
Press OK on the Output Setting screen.
An icon representing specified output mode is displayed under Output Setting on the COPY screen.
NOTICE
The primary (main) tray gradually goes down while printed materials are output. DO NOT allow any object to interfere with the operation of the primary (main) tray on the left side of the finisher, as any interference may cause damage to the finisher.
NOTICE
The primary (main) tray has a limit in capacity. Be careful not to exceed the limit, otherwise unexpected trouble may be caused.
