Editing Pages on Job Centro
You can use Job Centro on a computer to edit the pages of hold jobs.
Hold jobs that are not RIPed cannot be edited.
Start Job Centro and log in to the machine. (Refer to Starting Job Centro.)
The [Job Centro] screen is displayed.

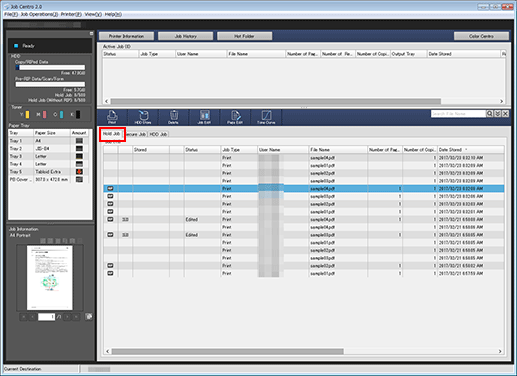

Click the [Hold Job] tab and select the job (one job only) to edit.
In Job Centro, you can only edit print jobs ([Job Type] is [Print]). To edit a copy job or scan job ([Job Type] is [Copy]), use the touch panel of the main body.

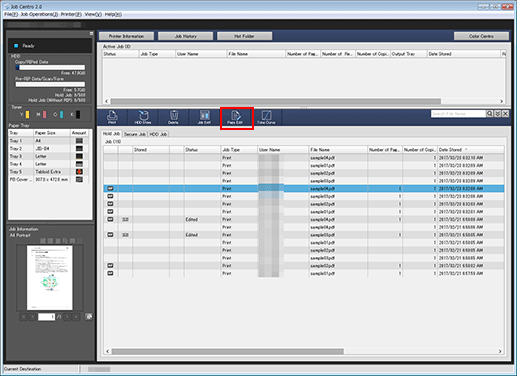

Click [Page Edit].
The specified job is called and the [Page Edit] screen is displayed.
Make edits on the pages (e.g., copy, move, delete / set chapters / insert tab papers).
For details about the editing operations, refer to the respective sections for the following items.
Copying and moving pages
Deleting pages
Rotating pages
Setting chapters
Inserting tab papers
Inserting blank pages
Inserting pages from another job

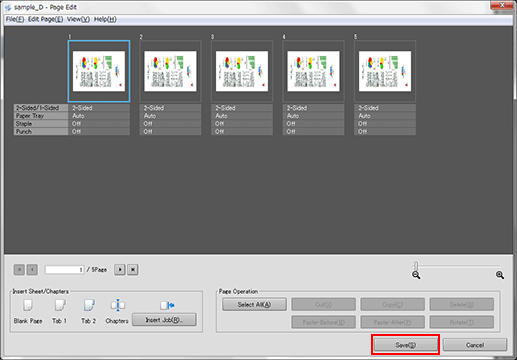

After editing, click [Save].
The [Page Edit] screen closes and the edited content is saved. After saving, [Edited] is displayed in [Status] of the job displayed on the [Hold Job] screen of Job Centro.
The operations in Job Centro differ from the touch panel of the main body and you do not have the option to newly save or overwrite. To newly save as another job, copy an original job in the [Hold Job] screen of Job Centro and edit it.
Copying or moving pages
You can copy or move pages.

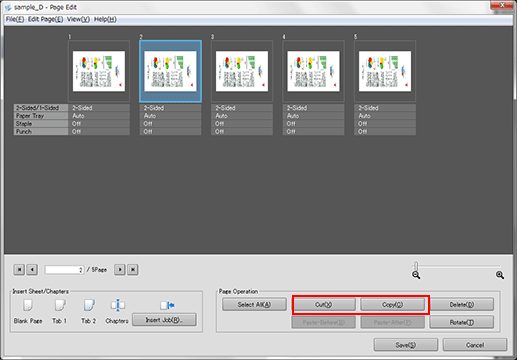

Select the page(s) you want to copy or move, then click [Copy] or [Cut].
To copy a page, click [Copy].
To move a page, click [Cut].
Multiple pages can be selected.

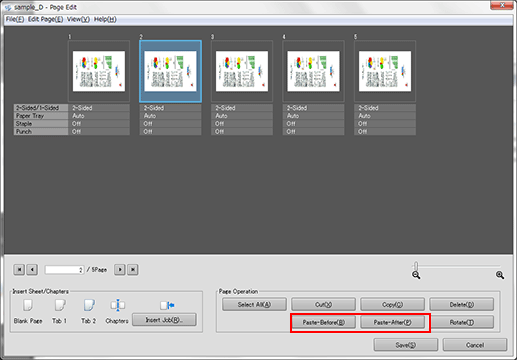

Select the thumbnail of the page of copy or move destination and click [Paste-Before] or [Paste-After].
[Paste-Before]: The pages to be copied/moved are inserted before the specified page.
[Paste-After]: The pages to be copied/moved are inserted after the specified page.
Check that the copied or moved pages have been inserted into the specified position.
Deleting pages
You can delete pages.
Select the thumbnail(s) of the page(s) you want to delete, then click [Delete].
Multiple pages can be selected.
Check that the selected pages have been deleted.
Rotating pages
You can rotate pages.

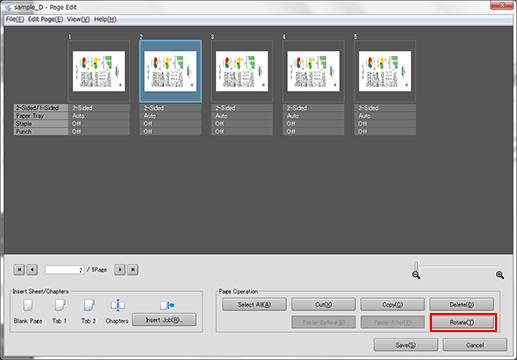

Press the thumbnail(s) of the page(s) you want to rotate, then click [Rotate].
Multiple pages can be selected.

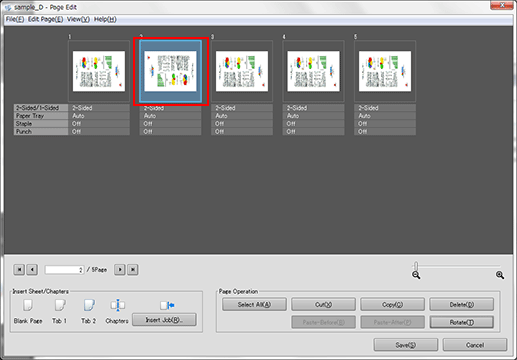

Check that the selected pages have been rotated.
Each time you click [Rotate], the selected pages are rotated 180 degrees clockwise.
Setting chapters
You can insert separators to set chapters. When you set a chapter on a page, the page is set to be printed on the front side and a blank page is inserted if necessary.

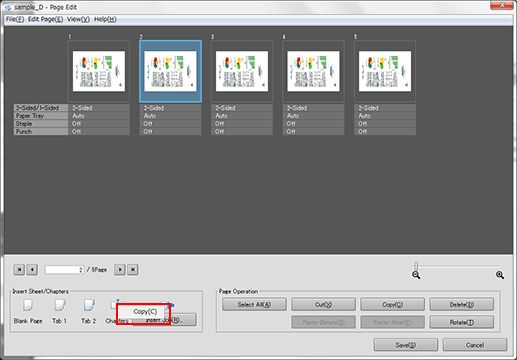

Right-click the [Chapters] icon and select [Copy] from the menu.
Select the thumbnail of the page to set a chapter and click [Paste-Before] or [Paste-After].
[Paste-Before]: A chapter is set before the specified page.
[Paste-After]: A chapter is set after the specified page.
Check that a chapter has been set to the page specified and a vertical line is displayed to show the insertion position.
Inserting tab papers
You can insert tab papers.

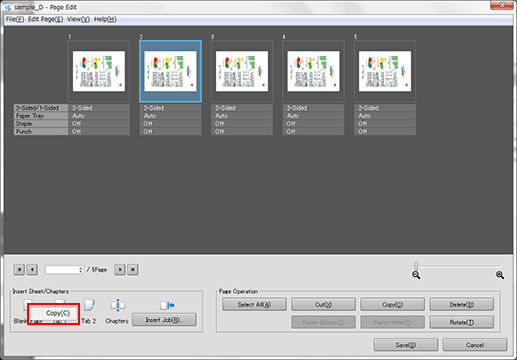

Right-click the [Tab 1]/[Tab 2] icons and select [Copy] from the menu.
Select the thumbnail of the page to insert a tab paper and click [Paste-Before] or [Paste-After].
[Paste-Before]: A tab paper is inserted before the specified page.
[Paste-After]: A tab paper is inserted after the specified page.
Check that the tab paper has been inserted in the specified position.
Inserting blank pages
You can insert blank pages.

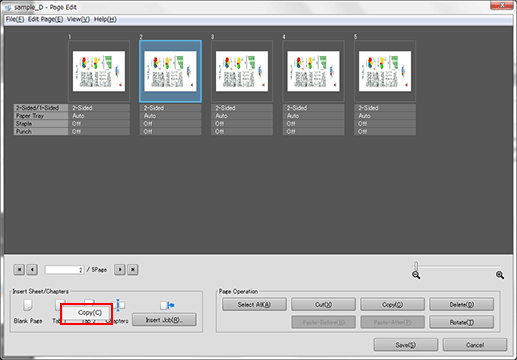

In the [Page Edit] screen, right-click the [Blank Page] icon and select [Copy] from the menu.

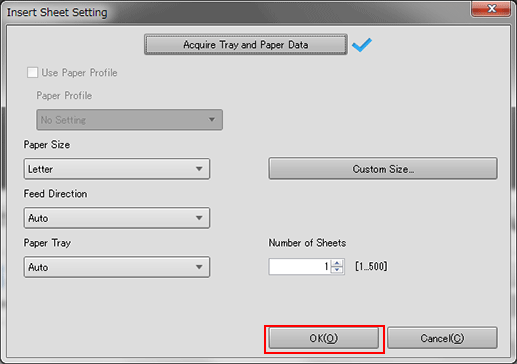

In the [Insert Sheet Setting] screen, specify the paper size, feed direction and paper tray and click [OK].
If you click [Acquire Tray and Paper Data], the tray and paper data are acquired and a blue check mark is added.
Select the thumbnail of the page to insert a blank page and click [Paste-Before] or [Paste-After].
[Paste-Before]: A blank page is inserted before the specified page.
[Paste-After]: A blank page is inserted after the specified page.
Check that the blank pages have been inserted in the specified position.
Inserting pages from another job
You can select and insert pages of another job.

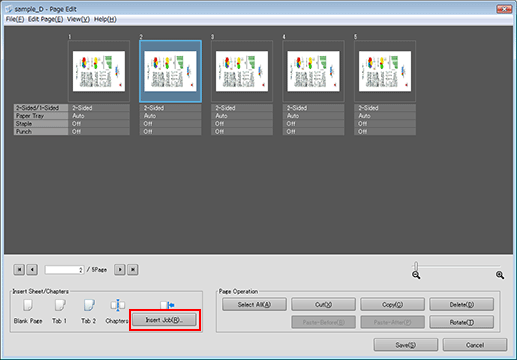

Click [Insert Job].

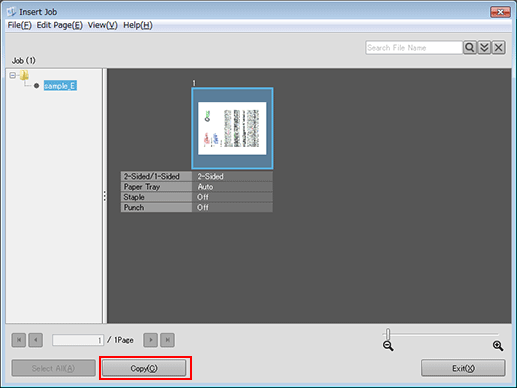

In the [Insert Job] screen, select the job to copy from the list in the left pane. In the job list screen, select the job to copy from the job list.
Select the thumbnail (or thumbnails) of the page (or pages) to insert and click [Copy].
Click [Exit], select the thumbnail of the page to insert another job, then click [Paste-Before] or [Paste-After].
[Paste-Before]: The pages of another job are inserted before the specified page.
[Paste-After]: The pages of another job are inserted after the specified page.
Check that the pages from another job have been inserted in the specified position.
