Clamp CD Width Adjustment

If there is misalignment, unevenness, or irregularity in the second half of the body sets in the clamped portion, adjust the cover paper width in the cross paper-feed direction.

The sizes referred to in this section are those of body sets corresponding to cover sizes.

As an example, this section explains how to adjust a misalignment of 1 mm.

Meaning and Purpose of Clamp CD Width Adjustment

  • When printing multiple copies of a perfect-bound book, if there is misalignment in the body sets in the horizontal scanning direction or if the pages in the second half of the book are misaligned, this function allows you to adjust the vertical side of clamped pages by specifying the desired value.

  • - value: Reduces the distortion.

  • + value: Reduces the dispersion.

When to perform

  • When there is misalignment, curve, or unevenness in the clamped pages of a perfect-bound book

  • If the body sets are misaligned in the horizontal scanning direction or if the pages in the second half of the book are misaligned when printing multiple copies of a perfect-bound book

Intended Environment

Image Controller

Image Controller IC-605

Mounted finisher

Perfect Binder PB-503

* The sample screen may be different from the actual display depending on your system environment.

Precautions

  • If the whole book is misaligned, or if the pages of the book are vertically misaligned, use the Sub Compile CD Width Adjustment function to adjust the alignment. (Refer to Sub Compile CD Width Adjustment.)

  1. Check for misalignment 'a' in the body sets of a perfect-bound book.

  2. On the touch panel of the main body, press Adjustment on the MACHINE screen.

  3. Press Finisher Adjustment on the Adjustment Menu screen.

  4. Press Perfect Binder Adjustment on the Finisher Adjustment menu.

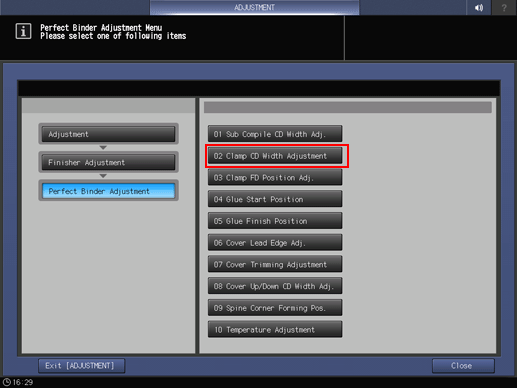

  5. Press Clamp CD Width Adjustment on the Perfect Binder Adjustment menu.

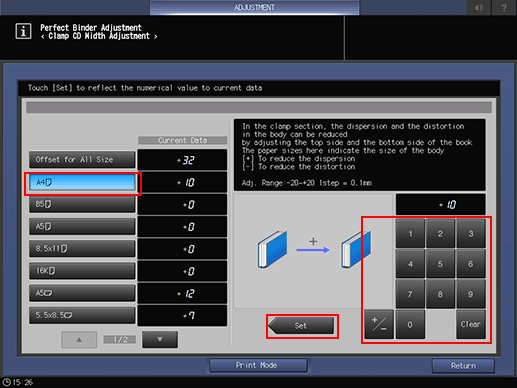

  6. Press the paper size to adjust. Enter the adjustment value and press Set.

    Example: In this example, reduce a 1 mm misalignment for A4long edge feed.

    Item

    Setting

    A4long edge feed

    Reducing the 1 mm misalignment (10)

    • Press 1, 0, and Set to enter the value [10]. This reduces the misalignment by 1 mm.

    • supplementary explanationPress the keypad on the screen to set the value.

    • supplementary explanationUse +/- to specify the value to be positive or negative. Set a positive value (narrower) to reduce misalignment. Set a negative value (wider) to reduce curve.

    • supplementary explanationThe values are in 0.1 mm increments. (1 = 0.1 mm)

    • supplementary explanationWith a specific paper size selected, the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

    • supplementary explanationPressing Print Mode switches the mode to print mode, which allows you to print the original.

  7. Print the original again in perfect binding and check the misalignment in the body sets.

    Repeat the above steps until misalignment is cleared in the body set.
