2 Pos. Staple Pitch Adj.

When Finisher FS-531 or Finisher FS-612 is mounted on the machine, adjust the two-position staple pitch in Fold & Staple and Staple modes.

Objects of adjustment: Fold & Staple, Staple

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

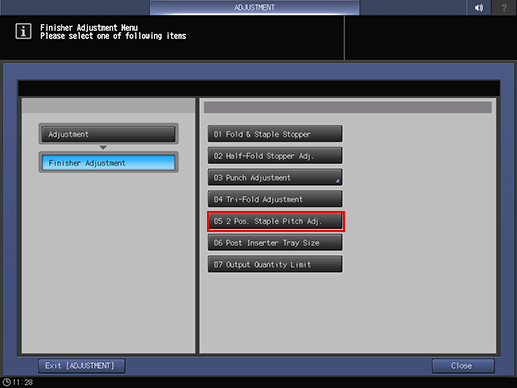

  2. Press Finisher Adjustment and 2 Pos. Staple Pitch Adj. in sequence.

  3. Select Fold & Staple or Staple.

  4. Press Print Mode.

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Check pitch a of the staple leg.

    Allowance: a = 128 mm ± 6 mm

  8. If any adjustment is required, press Exit PrintMode to return to the 2 Pos. Staple Pitch Adj. screen.

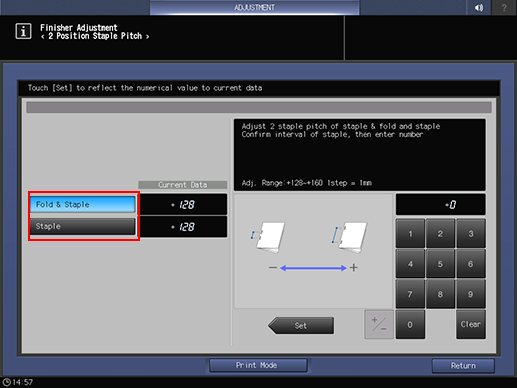

  9. Use the touch panel keypad to enter the set value.

    Adj. Range: -128~+160 1 step = 1 mm

    • supplementary explanationPress Set to change the Current Value.

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press Return.

    The screen returns to the Finisher Adjustment Menu screen.
