2-Side Slitting Adjustment

Adjust the 2-side slitting amount of Trimmer Unit TU-503 mounted on Saddle Stitcher SD-513.

Adjustment range: Front, Rear

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

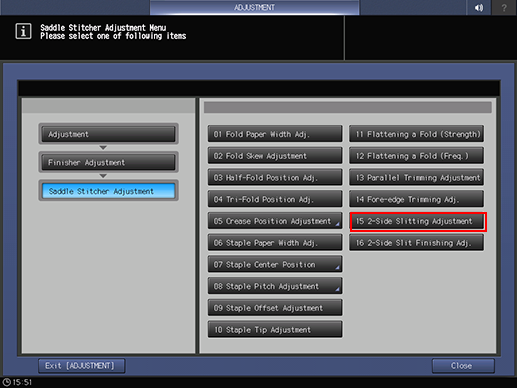

  2. Press Finisher Adjustment, Saddle Stitcher Adjustment, and 2-Side Slitting Adjustment in sequence.

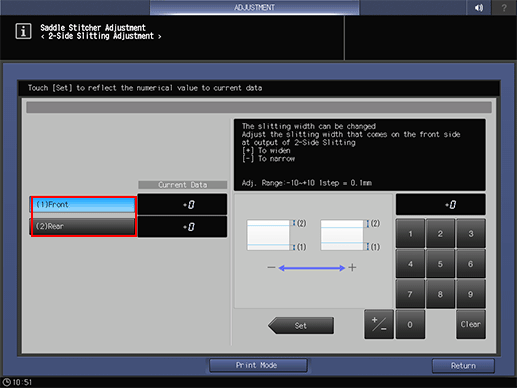

  3. Select Front or Rear.

  4. Press Print Mode.

  5. Load A3 paper short edge feed or 11 17 short edge feed paper in any tray, and select the button of that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Measure the length of output paper, "a", then check the difference between the measurement value and the set value.

    Allowance: Setting value-a = within ±0.5 mm

  8. If any adjustment is required, press Exit PrintMode to return to the 2-Side Slitting Adjustment screen.

  9. Use the touch panel keypad to enter the set value.

    Adj. Range: -10~+10 1 step = 0.1 mm

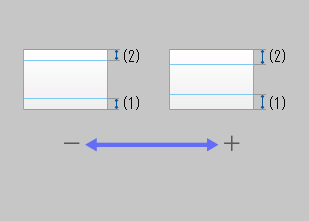

    [-] To narrow [+] To widen

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press Return.

    The screen returns to the Saddle Stitcher Adjustment Menu screen.
