Fold & Staple Stopper

When Finisher FS-612 is mounted on the machine, adjust the Fold&Staple staple position.

Objects of Adjustment: Offset for All Size, A3 short edge feed, B4 short edge feed, SRA4 short edge feed, A4 short edge feed, 12 18 short edge feed, 11 17 short edge feed, 8.5 14 short edge feed, 8.5 11 short edge feed, 8 13 short edge feed, 8K short edge feed, 16K short edge feed, SRA3 short edge feed, Custom(380~458 mm), Custom(279~379 mm)

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

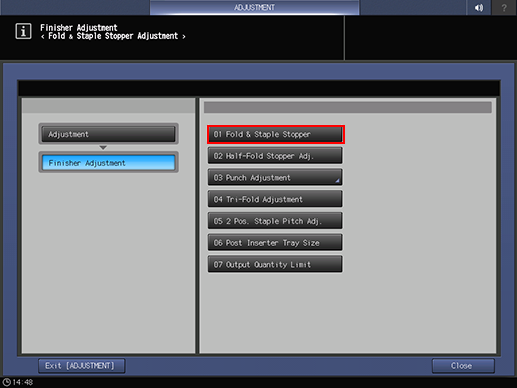

  2. Press Finisher Adjustment and Fold & Staple Stopper in sequence.

  3. Select the size to be adjusted using down or up.

  4. Press Print Mode.

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Measure the difference (a) between the center line and the position of staples.

    Allowance: a = 0 mm ± 1 mm

  8. If any adjustment is required, press Exit PrintMode to return to the Fold & Staple Stopper screen.

  9. Use the touch panel keypad to enter the set value.

    Adj. Range: -128~+127 1 step = 0.1 mm

    [-] To move to the right [+] To move to the left

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press Return.

    The screen returns to the Finisher Adjustment Menu screen.
