Tri-Fold Position Adjustment

Adjust the positions of Fold 1 and Fold 2 for Tri-Fold in Saddle Stitcher SD-510 mounted in Finisher FS-532. Make this adjustment if the Multi Half-Fold position is not within the allowance range.

Objects of Adjustment: 8.5  11 w, A4 short edge feed, 16K short edge feed

NOTICE
  • When adjusting both Fold 1 and Fold 2, be sure to start with the Fold 1 adjustment. The position of Fold 1 is calculated from the edge of the paper, while that of Fold 2 is calculated from the position of Fold 1. Consequently, the measurement (b) in step 7 is subject to the change in either position of Fold 1 and Fold 2.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

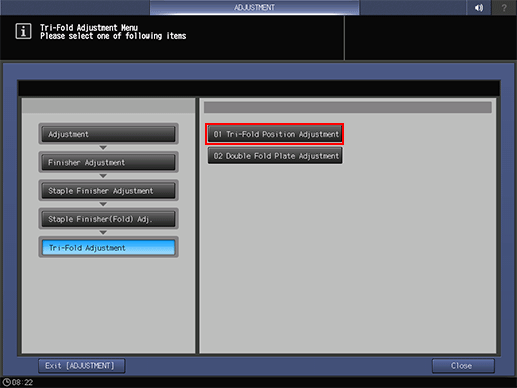

  2. Press Finisher Adjustment, Staple Finisher Adjustment, Staple Finisher(Fold) Adj., Tri-Fold Adjustment, and Tri-Fold Position Adjustment in sequence.

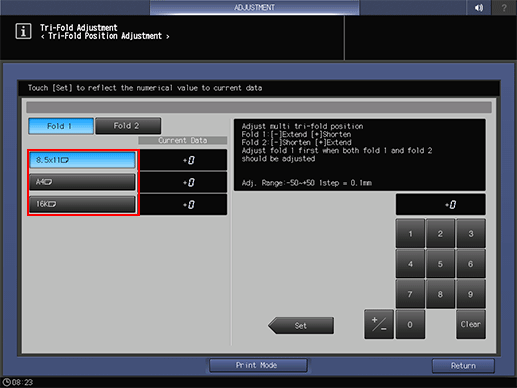

  3. Select the size to be adjusted.

  4. Press Print Mode.

  5. Load the paper size selected in step 3, then select that tray key.

    • supplementary explanationFor Output Setting, Multi Tri-Fold is automatically selected.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Measure the lengths (a) and (b) of the printed paper.



    Paper Size

    Allowance

    a

    b

    A4 short edge feed

    95.0 mm ± 2.0 mm

    101.0 mm ± 2.0 mm

    8.5  11 short edge feed

    89.4 mm ± 2.0 mm

    95.0 mm ± 2.0 mm

    16K short edge feed

    88.0 mm ± 2.0 mm

    91.0 mm ± 2.0 mm

  8. Press Exit PrintMode to return to the Tri-Fold Position Adjustment screen.

  9. Select Fold 1.

  10. Use the touch panel keypad to enter the set value.

    Adj. Range: -50~+50 1 step = 0.1 mm

    Fold 1: [-] Extend [+] Shorten

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationThe measurement (a) in step 7 increases with positive value entered, and decreases with negative value entered.

  11. Press Set to enter the Current Data as the setting value.

  12. Select Fold 2.

  13. Use the touch panel keypad to enter the set value.

    Adj. Range: -50~+50 1 step = 0.1 mm

    Fold 2: [-] Shorten [+] Extend

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationThe measurement (b) in step 7 increases with positive value entered, and decreases with negative value entered.

  14. Press Set to enter the Current Data as the setting value.

  15. Repeat steps 4 to 14 until the desired result is obtained.

  16. Press Return.

    The screen returns to the Tri-Fold Adjustment Menu screen.

  17. Press Close.

    The screen returns to the Staple Finisher(Fold) Adjustment Menu screen.
