FD-Mag. Adjustment (Back)

Adjust the magnification in paper feed direction on the back side when scanning on the ADF.

NOTICE
  • Make this adjustment after completing Machine Adjustment - Printer Adjustment - FD-Mag. Adjustment.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

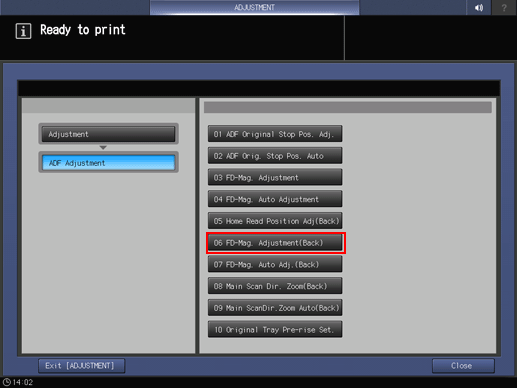

  2. Press ADF Adjustment and FD-Mag. Adjustment(Back) in sequence.

  3. Press Print Mode.

  4. Load A4 paper in a tray, and select that tray.

    • supplementary explanationDo not change Simplex/Duplex setting because it is selected automatically.

  5. Place the test chart on the ADF tray, and press Start on the control panel.

    A sample pattern will be output.

    • supplementary explanationFace the test chart surface downward and place it in the ADF tray.

  6. Make sure that the difference between the lengths (D) of the output paper and test chart is within the allowance range.

    Allowance: 0 mm ± 1.0 mm

  7. If any adjustment is required, press Exit PrintMode to return to the FD-Mag. Adjustment(Back) screen.

  8. Use the touch panel keypad to enter the set value.

    Adj. Range: -20~+20 1 step = 0.1 %

    [-] Short [+] Long

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

  9. Repeat steps 3 to 8 until the desired result is obtained.

  10. Press Return.

    The screen returns to the ADF Adjustment Menu screen.
