Post Inserter Tray Size
When Finisher FS-531 or Finisher FS-612 is equipped with Post Inserter PI-502, adjust the tray size of Post Inserter PI-502.
Objects of Adjustment: A4 short edge feed, 8.5 11 short edge feed
Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

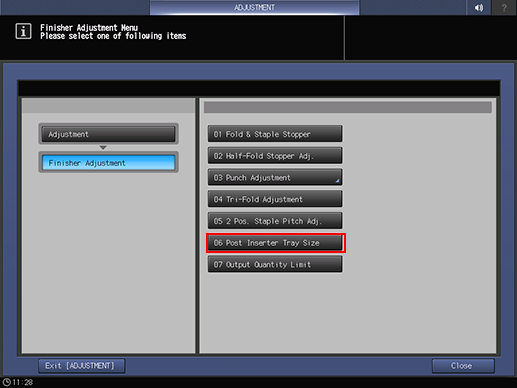

Press Finisher Adjustment and Post Inserter Tray Size in sequence.

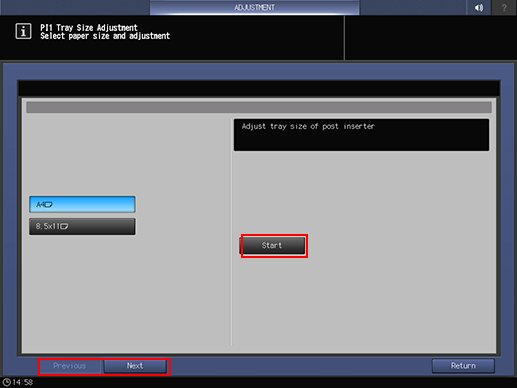

Use Next or Previous to select the upper tray or lower tray.
Select the size of the paper loaded in the tray of Post Inserter PI-502 you want to adjust, press Start.
Confirm the message Completed.
Press Return.
The screen returns to the Finisher Adjustment Menu screen.
