Crease Position Adjustment

Half-Fold Crease Position

Move the half-fold crease position in Creaser Unit CR-101 mounted on Saddle Stitcher SD-513. Adjust the distance from the cover edge of the top face to the crease position.

Objects of Adjustment: Offset for All Size, SRA3 short edge feed, A3 short edge feed, B4 short edge feed, SRA4 short edge feed, A4 short edge feed, B5 short edge feed, 12 18 short edge feed, 11 17 short edge feed, 8.5 14 short edge feed, 8.5 11 short edge feed, 8 13 short edge feed, 8K short edge feed, 16K short edge feed, Custom(380~488 mm), Custom(257~379 mm), 13 19 short edge feed

NOTICE
  • If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

NOTICE
  • Make this adjustment after completing Half-Fold Position Adj..

NOTICE
  • Even once the crease position is adjusted, a misalignment may be caused between the folding position and crease position depending on the paper weight. In this case, retry this adjustment so that the folding position matches the crease position.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

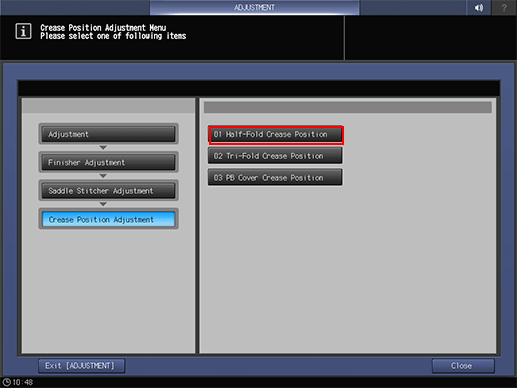

  2. Press Finisher Adjustment, Saddle Stitcher Adjustment, Crease Position Adjustment, and Half-Fold Crease Position in sequence.

  3. Select the size to be adjusted using down or up.

  4. Press Print Mode.

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Measure misalignment a between the folding line on the output paper and crease positions.

    Allowance: a = ± 1 mm or less

    (1) Folding line (2) Crease edge

  8. If any adjustment is required, press Exit PrintMode to return to the Half-Fold Crease Position Adjustment screen.

  9. Use the touch panel keypad to enter the set value.

    Adj. Range: -20~+20 1 step = 0.1 mm

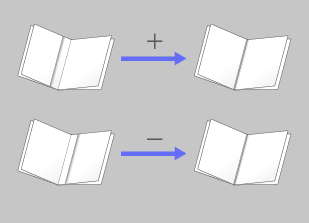

    [-] To shorten [+] To lengthen

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press Return.

    The screen returns to the Crease Position Adjustment Menu screen.

Tri-Fold Crease Position

Move the tri-fold crease position in Creaser Unit CR-101 mounted on Saddle Stitcher SD-513. For both the Fold 1 crease position and the Fold 2 crease position, adjust the distance from the paper edge to the crease position.

Objects of Adjustment: Offset for All Size, A4 short edge feed, 8.5 11 short edge feed

NOTICE
  • If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

  • Make this adjustment after completing Tri-Fold Position Adj..

  • Even once the crease position is adjusted, a misalignment may be caused between the folding position and crease position depending on the paper weight. In this case, retry this adjustment so that the folding position matches the crease position.

  • Any crease position causes the tri-fold position to be pulled to the crease position, and the fold position may be changed.
    In this case, make the Tri-Fold Position Adj. to determine the tri-fold position, then follow the steps below to adjust the crease position.
    1. Largely shift the crease position from the tri-fold position. Shift the crease position in the negative (-) direction or positive (+) direction so that each current position shifts at a maximum when outputting paper.
    2. Check the output paper, then measure the distance from the crease position on the output paper to the desired crease position.
    3. Enter the measurement distance above into the setting value of Crease Position Adjustment.
    For details on the setting procedure, refer to the following.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

  2. Press Finisher Adjustment, Saddle Stitcher Adjustment, Crease Position Adjustment, and Tri-Fold Crease Position in sequence.

  3. Select the size to be adjusted.

  4. Press Print Mode.

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Measure misalignment a between the folding line on the output paper and crease positions.

    Allowance: a = ± 1 mm or less

    (1) Folding line (2) Crease edge

  8. If any adjustment is required, press Exit PrintMode to return to the Tri-Fold Crease Position Adjustment screen.

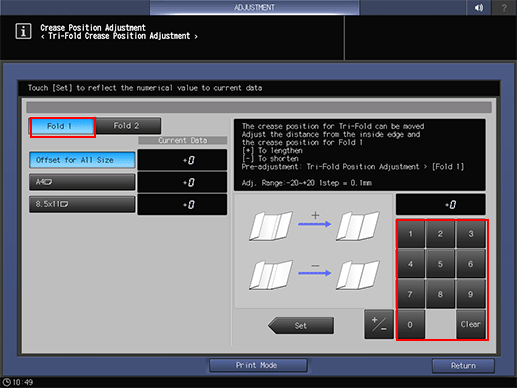

  9. Select Fold 1, and then use the touch panel keypad to enter the set value.

    Adj. Range: -20~+20 1 step = 0.1 mm

    [-] To shorten [+] To lengthen

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

    • supplementary explanationAdjust the length from the inside edge to the Fold 1 crease position.

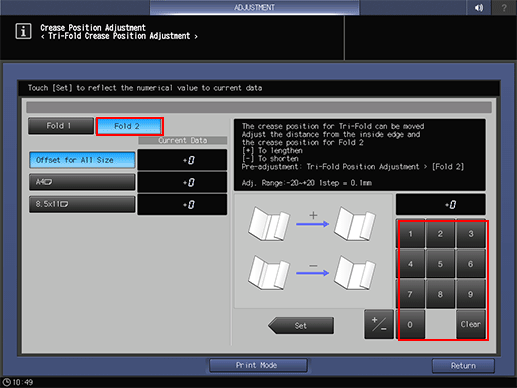

  10. Select Fold 2, and then use the touch panel keypad to enter the set value.

    Adj. Range: -20~+20 1 step = 0.1 mm

    [-] To shorten [+] To lengthen

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

    • supplementary explanationAdjust the length from the inside edge to the Fold 2 crease position.

  11. Repeat steps 4 to 10 until the desired result is obtained.

  12. Press Return.

    The screen returns to the Crease Position Adjustment Menu screen.

Perfect Binding Cover Crease Position

Move the perfect binding cover crease position in Creaser Unit CR-101 mounted on Saddle Stitcher SD-513 (With Perfect Binder PB-503 mounted). The perfect binding cover crease position is controlled so that the position matching the perfect binding cover spine width is set to the reference position. For both the first crease position and the second crease position, adjust the distance from the paper edge to the crease position.

Objects of Adjustment: Offset for All Size, SRA3 short edge feed, A3 short edge feed, B4 short edge feed, SRA4 short edge feed, A4 short edge feed, B5 short edge feed, 12  18 short edge feed, 11  17 short edge feed, 8.5  14 short edge feed, 8.5  11 short edge feed, 13 short edge feed, 8K short edge feed,16K short edge feed, Custom(380~488 mm), Custom(257~379 mm), 13  19 short edge feed

NOTICE
  • If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

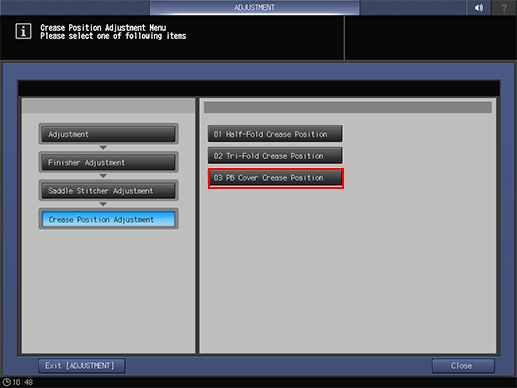

  2. Press Finisher Adjustment, Saddle Stitcher Adjustment, Crease Position Adjustment, and PB Cover Crease Position in sequence.

  3. Select the size to be adjusted using down or up.

  4. Press Print Mode.

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Measure misalignment between the folding line on the output paper and crease positions.

  8. If any adjustment is required, press Exit PrintMode to return to the PB Cover Crease Position Adjustment screen.

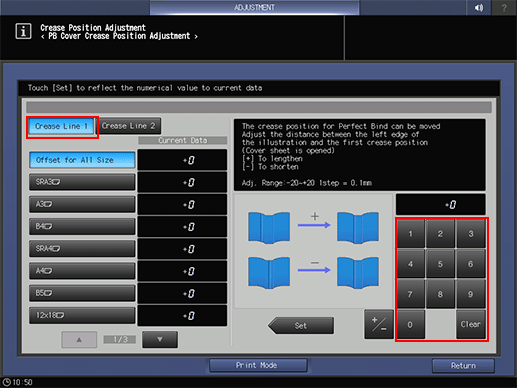

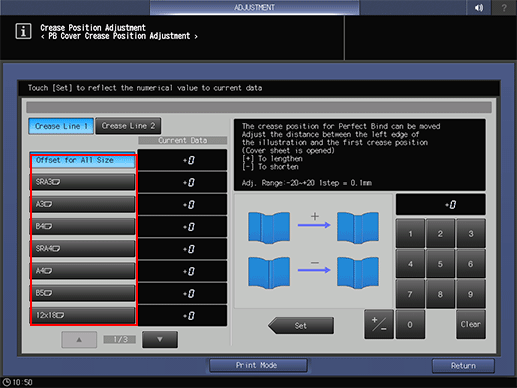

  9. Select Crease Line 1, then enter the set value using the keypad on the screen.

    Adj. Range: -20~+20 1 step = 0.1 mm

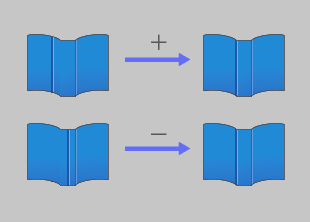

    [-] To shorten [+] To lengthen

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

    • supplementary explanationAdjust the length from the paper edge on the left side of the top face of the perfect binding cover to the first crease position.

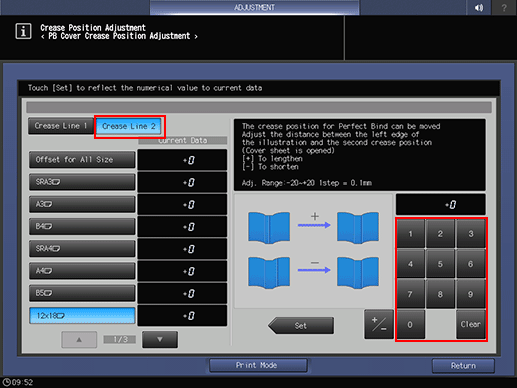

  10. Select Crease Line 2, then enter the set value using the keypad on the screen.

    Adj. Range: -20~+20 1 step = 0.1 mm

    [-] To shorten [+] To lengthen

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

    • supplementary explanationAdjust the length from the paper edge on the left side of the top face of the perfect binding cover to the second crease position.

  11. Repeat steps 4 to 10 until the desired result is obtained.

  12. Press Return.

    The screen returns to the Crease Position Adjustment Menu screen.
