Fold&Staple Paper Width Adj.

Adjust the pitch of the horizontal alignment plate for misalignment in the crosswise direction in the half-fold or multi tri-fold paper in Saddle Stitcher SD-510 mounted on Finisher FS-532.

Objects of Adjustment:
Offset for All Size, SRA3 short edge feed, 12  18 short edge feed, A3 short edge feed, 11  17 short edge feed, 8K short edge feed, B4 short edge feed, SRA4 short edge feed, 8.5  14 short edge feed, 8.5  11 short edge feed, B5 short edge feed, A4 short edge feed, 16K short edge feed, 13 short edge feed, 13  19 short edge feed, Custom(380~488 mm), Custom(240~379 mm)

NOTICE
  • If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

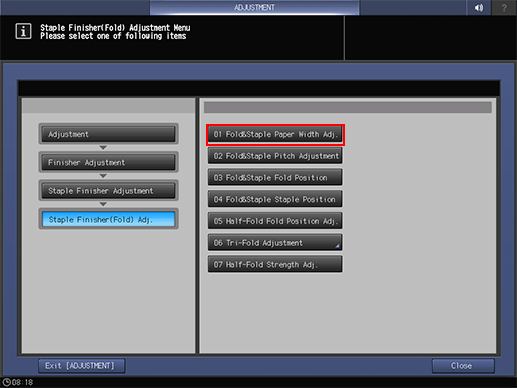

  2. Press Finisher Adjustment, Staple Finisher Adjustment, Staple Finisher(Fold) Adj., Fold&Staple Paper Width Adj. in sequence.

  3. Select the size to be adjusted using down or up.

  4. Press Print Mode.

  5. Load the paper size selected in step 3, then select that tray key.

    • supplementary explanationFor Output Setting, Fold & Staple is automatically selected.

  6. Press Start on the control panel.

    A sample pattern will be output.

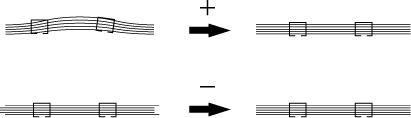

  7. Check if the set of paper shows misalignment (a), or is curved (b).

    • supplementary explanationa: This is caused if the specified paper width is larger than the actual width.
      b: This is caused if the specified paper width is smaller than the actual width.
      Allowance: a = 1.0 mm or less

  8. Press Exit PrintMode to return to the Fold&Staple Paper Width Adjustment screen.

  9. If any adjustment is required, use the touch panel keypad to enter the set value.

    Adj. Range: -50~+50 1 step = 0.1 mm

    [-] Narrow [+] Wide

    • supplementary explanationPress +/- to specify the value to be positive or negative.

  10. Press Set to change the setting with the Current Data.

  11. Repeat steps 4 to 10 until the desired result is obtained.

  12. Press Return.

    The screen returns to the Staple Finisher(Fold) Adjustment Menu screen.
