Periodical Both Sides Adj.
Configure settings for the periodical both-side adjustment. This menu item is to be displayed on the machine mounted with Integrated Color Care Unit IQ-501.
Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

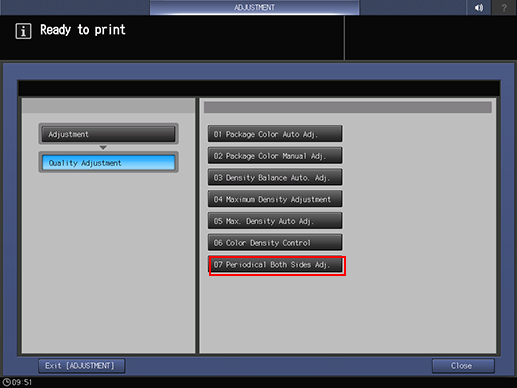

Press Quality Adjustment and Periodical Both Sides Adj. in sequence.
Change the settings as needed.
Menu item
Description
Setting value (: Default)
Periodical Both Sides Auto Adjustment
When data is printed out by the number of sheets specified in Adjustment Interval, you can select whether to periodically output charts and perform both sides adjustment.
If ON is selected, you can set Periodical Adjustment to ON or OFF for each tray in the AutoMeasure tab of the Both Sides Adjust screen.
ON, OFF
Adjustment Interval
Specify the interval to automatically make the both-side adjustment.
If ON is selected for Period. Both Sides Auto Adj., you can press Change and specify 100 to 9999 sheets. (Default: 500 sheets)
Deviation Check
Select whether to check a deviation.
ON, OFF
If ON is selected, specify the defined value (deviation amount) required to judge that a deviation occurs. The defined value between 0.5 mm and 10.0 mm can be specified. (Default: 2.0 mm)
Press OK.
The screen returns to the Quality Adjustment Menu screen.
