Output Quantity Limit
When Finisher FS-531 or Finisher FS-612 is mounted on the machine, specify the output quantity limit.
With Finisher FS-531 mounted
Objects of Adjustment: Staple / 62 to 80 g/m2, Staple / 81 to 105 g/m2, Staple / 106 to 135 g/m2, Staple / 136 to 216 g/m2
With Finisher FS-612 mounted
Objects of Adjustment: Staple / 62 to 80 g/m2, Staple / 81 to 105 g/m2, Staple / 106 to 135 g/m2, Fold & Staple / 62 to 80 g/m2, Fold & Staple / 81 to 105 g/m2, Half-Fold / 62 to 105 g/m2, Tri-Fold / 62 to 80 g/m2
Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

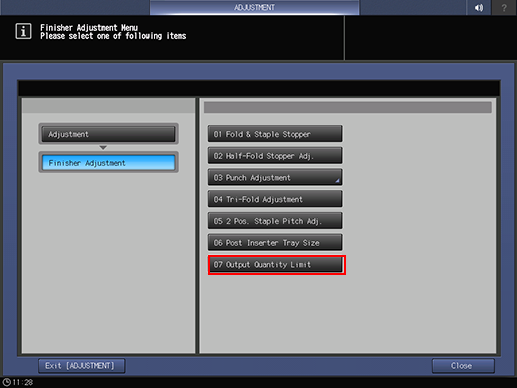

Press Finisher Adjustment and Output Quantity Limit in sequence.
Select the item button you want to specify the output quantity limit for.

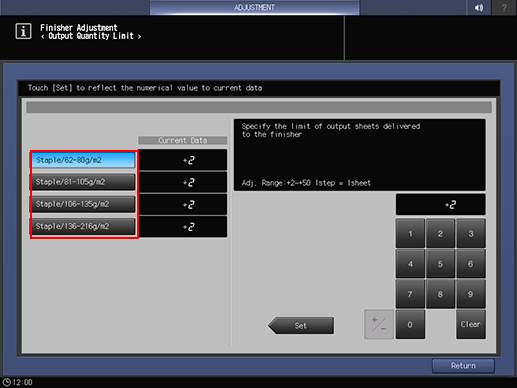

supplementary explanationWith Finisher FS-531 mounted
supplementary explanationWith Finisher FS-612 mounted
Use the touch panel keypad to enter the set value.
supplementary explanationPress Set to change the Current Value.
supplementary explanationWith Finisher FS-531 mounted
Objects of Adjustment: Staple / 62 to 80 g/m2
Adj. Range: +2~+50 (1 step = 1 sheet)
Objects of Adjustment: Staple / 81 to 105 g/m2
Adj. Range: +2~+40 (1 step = 1 sheet)
Objects of Adjustment: Staple / 106 to 135 g/m2
Adj. Range: +2~+30 (1 step = 1 sheet)
Objects of Adjustment: Staple / 136 to 216 g/m2
Adj. Range: +2~+20 (1 step = 1 sheet)
supplementary explanationWith Finisher FS-612 mounted
Objects of Adjustment: Staple / 62 to 80 g/m2, Staple / 81 to 105 g/m2
Adj. Range: +2~+50 (1 step = 1 sheet)
Objects of Adjustment: Staple / 106 to 135 g/m2
Adj. Range: 0, +2~+20 (1 step = 1 sheet)
Objects of Adjustment: Fold & Staple / 62 to 80 g/m2, Fold & Staple / 81 to 105 g/m2
Adj. Range: +2~+20 (1 step = 1 sheet)
Objects of Adjustment: Half-Fold / 62 to 105 g/m2, Tri-Fold / 62 to 80 g/m2
Adj. Range: +1~+3 (1 step = 1 sheet)
Press Return.
The screen returns to the Finisher Adjustment Menu screen.
