CMYK-CMYK DLP (Creation): Select Profiles

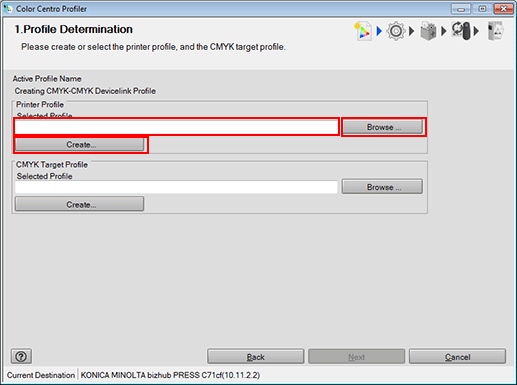

On the Profile Determination screen, specify the printer profile and the CMYK target profile which are used by CMYK-CMYK device link profile. In addition, you can create the printer profile and the CMYK target profile as required.
Specify the name of printer profile which is used by CMYK-CMYK device link profile. When you use the existed printer profile, click [Browse]. To create a new printer profile, click [Create].
When you click [Browse], the [Load Printer Profile] screen is displayed. In this case, go to Step 2.
When you click [Create], go to the steps described from Printer P: Specify a Measurement Data and Paper to Printer P: Complete the Procedure, and then go to step 3.
Click [Browse], select a printer profile, and then click [Finish].
Specify the CMYK target profile which is used by CMYK-CMYK device link profile. When you use the existed CMYK target profile, click [Browse]. When you create the new CMYK target profile, click [Create].
When you click [Browse], go to Step 4.
When you click [Create], go to the steps described from CMYK TP: Start Color Centro Profiler to CMYK TP: Complete the Procedure, and then go to step 5.
On the screen displayed by clicking [CMYK Target Profile] - [Browse], select the CMYK target profile used and click [Open].
The selected CMYK target profile is displayed to [Selected Profile] of [CMYK Target Profile].
Click [Next].
The Customize Color Conversions screen appears.
