Package Color Auto Adj.

Automatically adjust colors collectively. This menu item is to be displayed on the machine mounted with Intelligent Quality Optimizer IQ-501.

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

  2. Press [Quality Adjustment] and [Package Color Auto Adj.] in sequence.

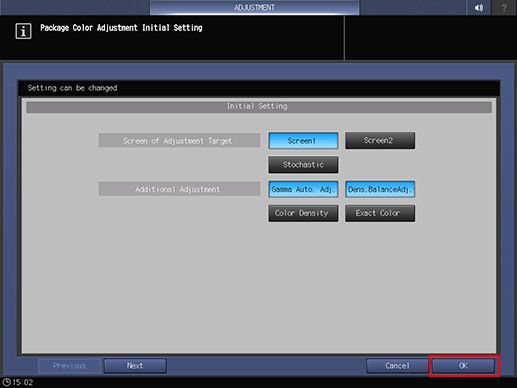

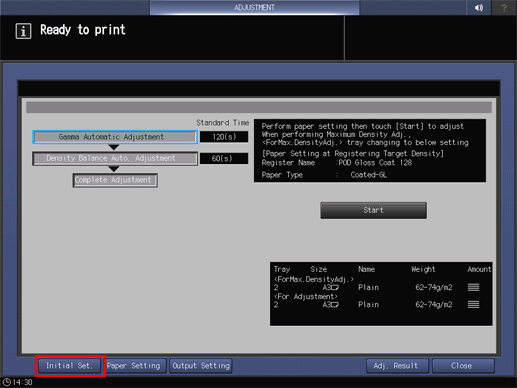

  3. Before making adjustments, you can press [Initial Set.] to change adjustment settings as needed.

  4. Change any setting (Screen of Adjustment Target, Additional Adjustment, Maximum Density Adjustment Tray, or Adjustment Tray), then press [OK].

    • You can press [Previous] or [Next] to move the page.

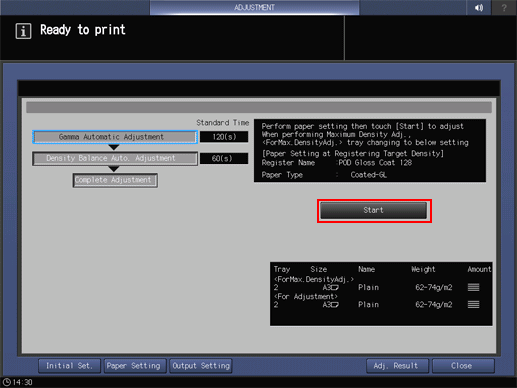

  5. Press [Start].

  6. When the adjustment is completed, the adjustment result is displayed.
