Preset Profile Management: Managing Profiles

The preset profile refers to a paper profile pre-registered on this machine. If a preset profile is added to a paper profile, it can used as a paper profile. A preset profile can be searched or deleted.

To add a new preset profile to this machine, a service setting is required. For details, contact your service representative.

Adding the Preset Profile to the Paper Profile

  1. Follow the procedure on User Setting to display the [User Setting Menu] screen.

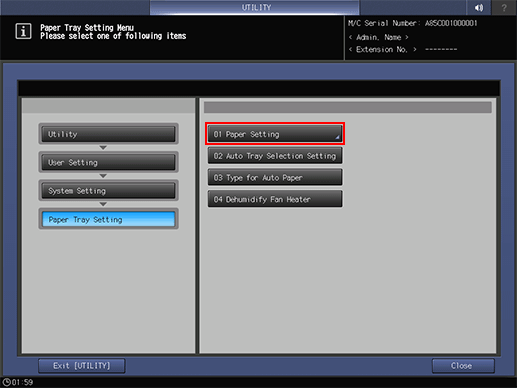

  2. Press [System Setting] on the [User Setting Menu] screen, and then press [Paper Tray Setting] and [Paper Setting] in sequence.

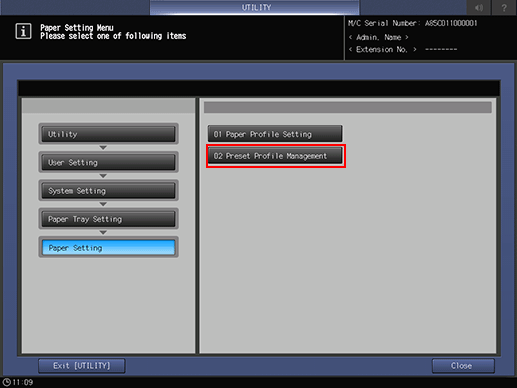

  3. Press [Preset Profile Management].

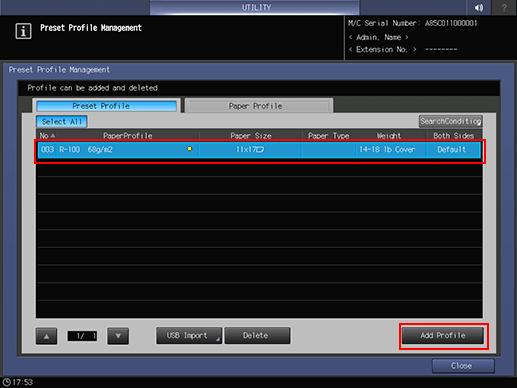

  4. Select the preset profile to be added, then press [Add Profile].

    • The preset profile is marked by .

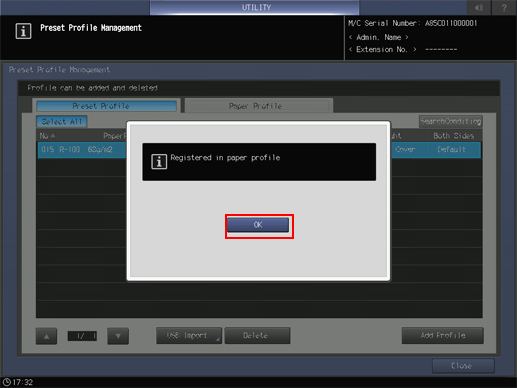

  5. Press [OK].

Deleting the Preset Profile

  1. Follow the procedure on User Setting to display the [User Setting Menu] screen.

  2. Press [System Setting] on the [User Setting Menu] screen, and then press [Paper Tray Setting] and [Paper Setting] in sequence.

  3. Press [Preset Profile Management].

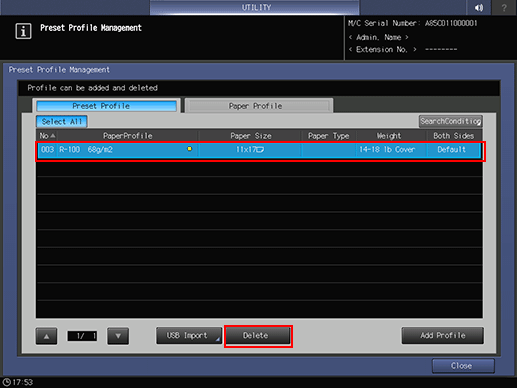

  4. Select the preset profile to be deleted, then press [Delete].

  5. Press [OK].

Searching for the Preset Profile or Paper Profile

  1. Follow the procedure on User Setting to display the [User Setting Menu] screen.

  2. Press [System Setting] on the [User Setting Menu] screen, and then press [Paper Tray Setting] and [Paper Setting] in sequence.

  3. Press [Preset Profile Management].

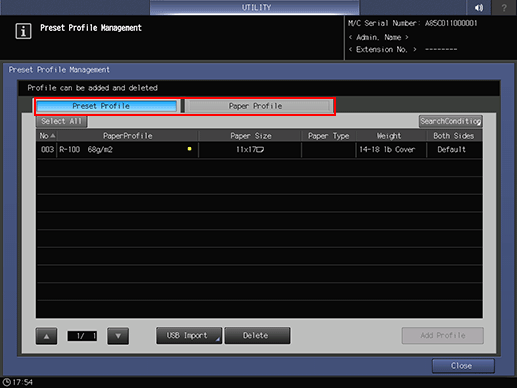

    The [Preset Profile Management] screen is displayed.

  4. Press [Preset Profile] or [Paper Profile] to suit the profile to be searched.

    • The preset profile is marked by .

    • The paper profile added from the preset profile is also marked by . If the profile is edited and saved, it is not marked by .

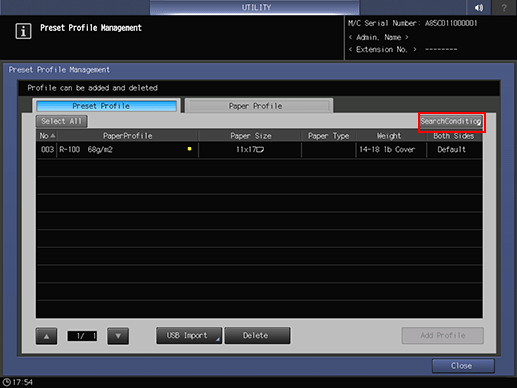

  5. Press [Search Condition].

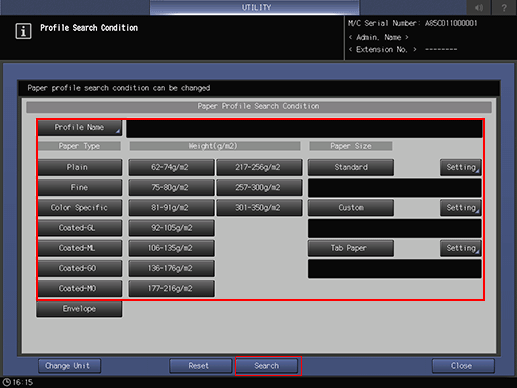

    The [Profile Search Conditions] screen is displayed.

  6. Specify search conditions, then press [Search].
